Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Product Name: | Stainless Steel Instrumentation Tubing | Type: | Seamless |
|---|---|---|---|
| Production: | TIG Welding | Finish: | Bright Annealed |
| Size: | 1/4'' - 1-1/2'' | Materials: | TP304/304L, 316/316L |
| Inspection: | EN10204 3.1 | Certificate: | ISO9001:2015 |
| Material: | Stainless Steel | End Connections: | Male NPT |
| Surface Finish: | Polished | Corrosion Resistance: | High |
| Pressure Rate: | Above 10000 Psi | Temperature Range: | -40°F to 250°F |
| Pipe Finish: | 340# Polished | Temperature Rating: | Up to 1500°F |
| Material Grade: | 304/304L/304H(1.4301/1.4306/1.4948) | Quality: | EN10204 3.1 |
| Properties: | Enhanced tensile and yield | ||
| Menyoroti: | Tabung hidrolik stainless steel dilas,tabung hidrolik stainless steel anil,Tabung Instrumentasi Stainless Steel TP316L |
||

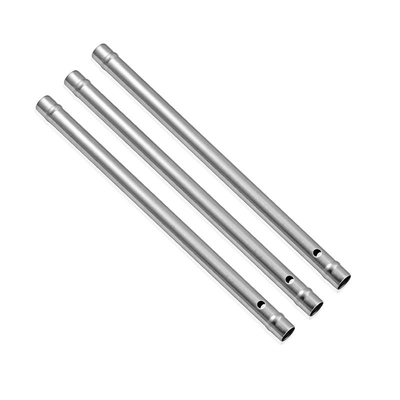

Stainless Steel Instrumentation Tubing ASTM A249 Las TP316L 6.00 X 1.00MM, Cerah Annealed
Kami dapat memasok tabung dan pipa stainless steel tanpa jahitan dalam jenis 304, 304L dan 316, 316L dari ukuran stok.
316 Baja tahan karat - digunakan untuk makanan dan baja tahan karat bedah. Juga dikenal sebagai baja tahan karat kelas laut karena ketahanan yang lebih tinggi terhadap korosi klorida dibandingkan dengan jenis304.316L adalah kelas karbon yang sangat rendah 316, umumnya digunakan dalam jam tangan stainless steel.316Ti termasuk titanium untuk ketahanan panas, maka digunakan dalam lapisan cerobong asap fleksibel.
316 stainless steel adalah jenis molybdenum-bearing.304dan kekuatan merangkak yang lebih tinggi pada suhu tinggi.
| O/D | Dinding | O/D | Dinding | O/D | Dinding |
|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 6 | 0.5 | 14 | 1.5 | 25 | 1.5 |
| 6 | 1.0 | 14 | 2.0 | 25 | 2.0 |
| 6 | 1.5 | 15 | 1.0 | 25 | 2.5 |
| 8 | 1.0 | 15 | 1.5 | 25 | 3.0 |
| 8 | 1.5 | 15 | 2.0 | 30 | 1.5 |
| 10 | 1.0 | 16 | 1.5 | 30 | 2.0 |
| 10 | 1.5 | 16 | 2.0 | 30 | 3.0 |
| 10 | 2.0 | 18 | 1.5 | 38 | 3.0 |
| 12 | 1.0 | 20 | 1.5 | 38 | 4.0 |
| 12 | 1.5 | 20 | 2.0 | ||
| 12 | 2.0 | 22 | 1.5 |
| O/D | Dinding | O/D | Dinding | O/D | Dinding |
|---|---|---|---|---|---|
| (dalam) | (swg) | (dalam) | (swg) | (dalam) | (swg) |
| 1/8 | 24 | 1/2 | 1/8 inci | 1 1/4 | 18 |
| 1/8 | 22 | 5/8 | 20 | 1 1/4 | 16 |
| 1/8 | 20 | 5/8 | 1818 | 1 1/4 | 14 |
| 3/61 | 24 | 5/8 | 16 | 1 1/4 | 1/8 inci |
| 3/16 | 22 | 5/8 | 14 | 1 3/8 | 16 |
| 3/16 | 20 | 5/8 | 1/8 inci | 1 1/2 | 16 |
| 3/16 | 18 | 3/4 | 20 | 1 1/2 | 14 |
| 1/4 | 22 | 3/4 | 18 | 1 1/2 | 1/4 inci |
| 1/4 | 20 | 3/4 | 16 | 1 1/2 | 1/8 inci |
| 1/4 | 18 | 3/4 | 14 | 1 3/4 | 16 |
| 1/4 | 16 | 3/4 | 12 | 1 3/4 | 1/8 inci |
| 5/16 | 22 | 3/4 | 1/8 inci | 2 | 16 |
| 5/16 | 20 | 3/4 | 3/16 | 2 | 14 |
| 5/16 | 18 | 7/8 | 18 | 2 | 1/8 inci |
| 5/16 | 16 | 7/8 | 16 | 2 | 1/4 inci |
| 3/8 | 22 | 7/8 | 14 | 2 1/4 | 16 |
| 3/8 | 20 | 7/8 | 1/8 inci | 2 1/4 | 10 |
| 3/8 | 16 | 1 | 20 | 2 1/4 | 1/4 inci |
| 3/8 | 14 | 1 | 18 | 2 1/2 | 16 |
| 3/8 | 1/8 inci | 1 | 16 | 2 1/2 | 1/8 inci |
| 7/16 | 20 | 1 | 14 | 2 1/2 | 1/4 inci |
| 1/2 | 22 | 1 | 12 | 3 | 16 |
| 1/2 | 20 | 1 | 10 | 3 | 14 |
| 1/2 | 18 | 1 | 3/16 inci | 3 | 10 |
| 1/2 | 16 | 1 | 1/4 inci | 3 | 1/4 inci |
| 1/2 | 14 | 1 1/8 | 16 | 4 | 1/4 inci |
